Part 4: Deploy a Module

Goal: Deploy your inspector to run on the machine autonomously.

Skills: Module packaging, registry deployment, tabular data capture.

Time: ~10 min

What You’ll Do

In Part 3, you built inspection logic that runs from your laptop. That’s great for development, but in production the code needs to run on the machine itself—so it works even when your laptop is closed.

The starter repo already created most of what you need:

  • A module entry point that connects your service to viam-server
  • meta.json—registry metadata
  • Model registration so viam-server can create instances of your service

You just need to set your namespace, build, package, and deploy.

4.1 Review the Module Structure

The starter repo already includes everything needed to run as a module. Let’s review what’s there.

Module entry point

src/main.py

import asyncio
from viam.module.module import Module
try:
    from models.inspector import Inspector
except ModuleNotFoundError:
    from .models.inspector import Inspector

if __name__ == '__main__':
    asyncio.run(Module.run_from_registry())

Module.run_from_registry() connects your module to viam-server. The import of Inspector is what triggers model registration—when Python loads the class, EasyResource automatically registers it. You don’t need to modify this file.

cmd/module/main.go

func main() {
    module.ModularMain(
        resource.APIModel{API: generic.API, Model: inspectionmodule.Inspector},
    )
}

This connects your module to viam-server and registers the inspector model. When you add this service to your machine configuration, viam-server uses this entry point to create and manage instances. You don’t need to modify this file.

Model registration

In Python, model registration is automatic. When Inspector subclasses EasyResource, the EasyResource.__init_subclass__ hook registers the model with viam-server using the MODEL class variable:

class Inspector(Generic, EasyResource):
    MODEL: ClassVar[Model] = Model(
        ModelFamily("stations", "inspection-module"), "inspector"
    )

No explicit registration function needed—the class definition itself is the registration.

module.go provides model registration in init():

var Inspector = resource.NewModel("stations", "inspection-module", "inspector")

func init() {
    resource.RegisterService(generic.API, Inspector,
        resource.Registration[resource.Resource, *Config]{
            Constructor: newInspectionModuleInspector,
        },
    )
}

Note the two uses of “inspector” here:

  • Inspector (capital I)—the Go variable name, exported so main.go can reference it
  • "inspector" (lowercase, in quotes)—a string that becomes the third part of the model triplet stations:inspection-module:inspector

This init() function runs automatically when the module starts, telling viam-server how to create instances of your service.

Registry metadata

meta.json

{
  "module_id": "stations:inspection-module",
  "visibility": "private",
  "models": [
    {
      "api": "rdk:service:generic",
      "model": "stations:inspection-module:inspector"
    }
  ],
  "entrypoint": "./run.sh"
}

The entrypoint points to run.sh, which creates a virtual environment, installs dependencies, and starts the module. The models array is pre-populated—it tells the registry what your module provides.

meta.json

{
  "module_id": "stations:inspection-module",
  "visibility": "private",
  "entrypoint": "bin/inspection-module"
}

The entrypoint is the compiled binary. The models array will be populated by update-models during the build process.

4.2 Build and Upload Your Module

Set your namespace

The starter repos use stations as a placeholder namespace. You need to replace it with your organization’s public namespace so the module is registered under your account.

  1. Find your public namespace:

    viam organizations list

    Look for the public_namespace value for your organization. If you don’t have one set, go to your organization’s settings page in the Viam app to create one.

  2. Update meta.json—replace stations with your namespace in both the module_id and (if present) the model field:

    {
  "module_id": "YOUR-NAMESPACE:inspection-module",
  ...
  "model": "YOUR-NAMESPACE:inspection-module:inspector"
}

  3. Update the model triplet in your source code to match:

In src/models/inspector.py, update the MODEL definition:

MODEL: ClassVar[Model] = Model(
    ModelFamily("YOUR-NAMESPACE", "inspection-module"), "inspector"
)

In module.go, update the model variable:

var Inspector = resource.NewModel("YOUR-NAMESPACE", "inspection-module", "inspector")

Register the module

Create the module entry in the Viam registry:

viam module create --module-path meta.json

Build and package

Build the module archive:

./build.sh

This creates a virtual environment, installs PyInstaller, bundles your code into a standalone binary, and packages it as dist/archive.tar.gz.

Update the module’s model list:

Build a local binary, then run update-models to detect which models your module provides and update meta.json:

make
viam module update-models --binary /full/path/to/bin/inspection-module

Replace /full/path/to/ with the absolute path to your module directory.

Cross-compile for the target platform:

Your module will run inside a Linux container, not on your development machine. Even if your Mac and the container both use ARM processors, a macOS binary won’t run on Linux—you need to cross-compile. Cross-compilation also requires disabling CGO (Go’s C interop) and using the no_cgo build tag.

CGO_ENABLED=0 GOOS=linux GOARCH=arm64 go build -tags no_cgo -o bin/inspection-module ./cmd/module

CGO_ENABLED=0 GOOS=linux GOARCH=amd64 go build -tags no_cgo -o bin/inspection-module ./cmd/module

CGO_ENABLED=0 GOOS=linux GOARCH=amd64 go build -tags no_cgo -o bin/inspection-module ./cmd/module

go build -o bin/inspection-module ./cmd/module

No cross-compilation needed—you’re already on Linux.

go build -o bin/inspection-module ./cmd/module

No cross-compilation needed—you’re already on Linux.

Package for upload:

tar czf module.tar.gz meta.json bin/

Upload to the registry

The --platform flag must match your machine’s architecture. Replace <archive> with your archive path from the previous step (dist/archive.tar.gz for Python, module.tar.gz for Go):

viam module upload --version 0.0.1 --platform linux/arm64 --upload <archive>

viam module upload --version 0.0.1 --platform linux/amd64 --upload <archive>

viam module upload --version 0.0.1 --platform linux/amd64 --upload <archive>

viam module upload --version 0.0.1 --platform linux/amd64 --upload <archive>

viam module upload --version 0.0.1 --platform linux/arm64 --upload <archive>

4.3 Add the Module to Your Machine

Add the inspector service:

  1. In the Viam app, go to your machine’s Configure tab
  2. Click + next to your machine part
  3. Select Component or service
  4. Search for your model (for example, your-namespace:inspection-module:inspector)
  5. Name it inspector-service
  6. Click Create

When you add a service from the registry, the module that provides it is added automatically.

Configure the service attributes:

{
  "camera": "inspection-cam",
  "vision": "vision-service"
}

Click Save.

Verify it started:

  1. Go to the Logs tab
  2. Look for startup messages from the inspector module
  3. You should see it initialize and connect to the camera and vision service

Test the inspector:

  1. In the Configure tab, click on inspector-service to open its configuration panel
  2. Expand Test card at the bottom
  3. In the DoCommand field, enter {"detect": true}
  4. Click Execute
  5. You should see a response with label and confidence values
  6. Click Execute several more times to see different detections as cans pass beneath the inspection-cam

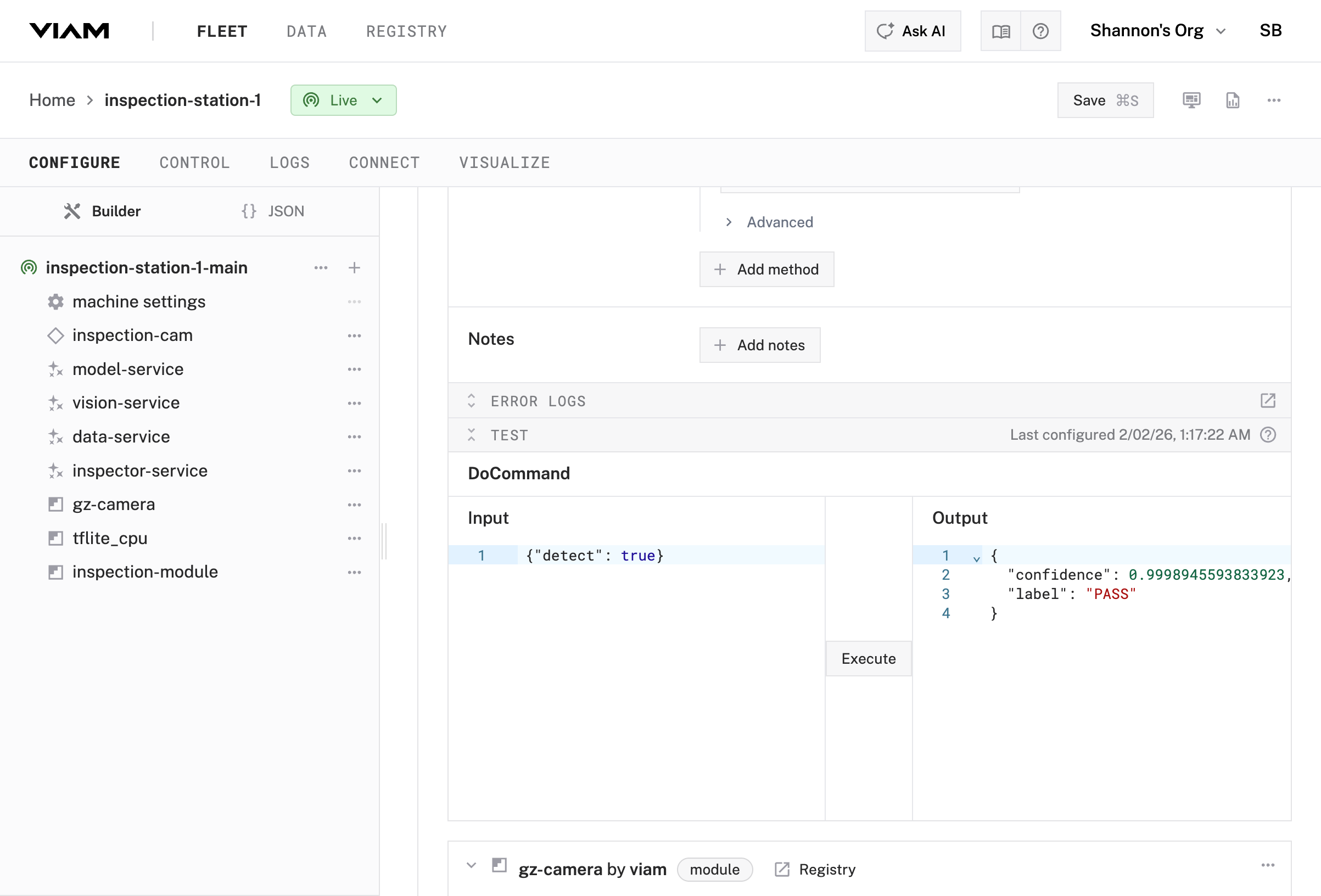

DoCommand test panel showing detection result with label PASS and confidence score.

The module is now ready. You’ll configure automatic detection in the next section.

4.4 Configure Detection Data Capture

In Part 2, you captured images from the vision service. Those images are great for visual review, but they’re binary data—you can’t query them with SQL. Now you’ll configure tabular data capture on your inspector’s DoCommand, which will let you query detection results.

Add inspector-service as a data manager dependency:

The data manager needs to know about your inspector service before it can capture data from it. You’ll add this dependency in the JSON configuration.

  1. In the Configure tab, click JSON in the upper left

  2. Find the data-service entry in the services array

  3. Add "depends_on": ["inspector-service"] to the data-service configuration:

    {
  "name": "data-service",
  "api": "rdk:service:data_manager",
  "model": "rdk:builtin:builtin",
  "attributes": { ... },
  "depends_on": ["inspector-service"]
}

  4. Click Save

This tells viam-server to wait for inspector-service to initialize before the data manager tries to capture data from it.

Enable data capture on the inspector:

  1. In the Configure tab, click on inspector-service to open its configuration panel

  2. Find the Data capture section and click Add method

  3. Select the method: DoCommand

  4. Set Frequency (hz) to 0.5 (captures every 2 seconds)

  5. In the Additional parameters section, add the DoCommand input:

    {
  "detect": true
}

  6. Save your configuration

This configuration tells the data manager to periodically call DoCommand({"detect": true}) on your inspector and capture the response—which includes label and confidence.

Query detection results:

After a few minutes of data collection, you can query the results:

  1. Open the Data tab in the Viam app

  2. Click Query

  3. Select SQL as your query language

    Data Query interface with SQL selected.

  4. Run a query to see recent detections:

    SELECT time_received, component_name, data
FROM readings
ORDER BY time_received DESC
LIMIT 10

    You can also filter to show only failures:

    SELECT time_received,
       data.docommand_output.label,
       data.docommand_output.confidence
FROM readings
WHERE data.docommand_output.label = 'FAIL'
ORDER BY time_received DESC
LIMIT 10

Understanding the data structure:

Each captured detection is stored as a JSON document. Here’s what the data looks like:

{
  "component_name": "inspector-service",
  "component_type": "rdk:service:generic",
  "method_name": "DoCommand",
  "time_received": "2026-02-02T02:23:27.326Z",
  "data": {
    "docommand_output": {
      "label": "PASS",
      "confidence": 0.9999136328697205
    }
  },
  "additional_parameters": {
    "docommand_input": {
      "detect": true
    }
  },
  "organization_id": "...",
  "location_id": "...",
  "robot_id": "...",
  "part_id": "..."
}

The key fields for analysis are nested under data.docommand_output:

  • label: The detection result—PASS, FAIL, or NO_DETECTION
  • confidence: How confident the model is (0.0 to 1.0)

Querying with MQL:

You can also query using MQL (MongoDB Query Language), which is useful for aggregations. Select MQL in the Query interface. For example, to count failures by hour:

[
  {
    $match: {
      component_name: "inspector-service",
      "data.docommand_output.label": "FAIL",
    },
  },
  {
    $group: {
      _id: { $dateTrunc: { date: "$time_received", unit: "hour" } },
      count: { $sum: 1 },
    },
  },
  { $sort: { _id: -1 } },
];

You’ll use MQL aggregation pipelines in Part 5 to build dashboard widgets.

4.5 Summary

You deployed your inspection logic as a Viam module:

  1. Reviewed—the starter repo already provided module structure and registration
  2. Deployed—set your namespace, built, packaged, uploaded, configured
  3. Configured data capture—detection results are now queryable

The development pattern:

  • During development: CLI runs locally, uses remote hardware (fast iteration)
  • In production: Module runs on machine, same code (autonomous operation)

Your inspection system now runs 24/7 detecting defects without your laptop connected.
